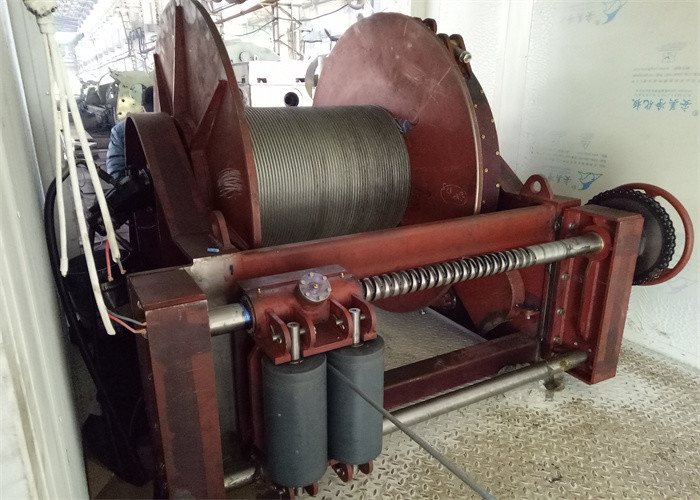

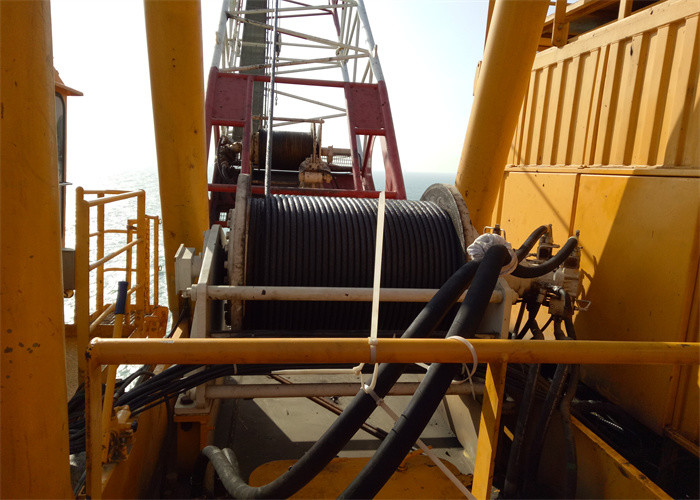

380v / 400v High Power Electric Winch Lebus Grooved Drum ForMarine
Electric Winch Definition
Electric winch is widely used in heavy work and large traction required. The motor of the single-drum electric winch drives the drum through the reducer, and a brake is arranged between the motor and the input shaft of the reducer. In order to meet the needs of lifting traction and rotary operations, there are double and multiple reel winches
Property
| Place of origin | HEBEI,CHINA |
| Customized | YES |
| Model | 201903260858 |
| Type | 5T*100m,8T*100m,10T*100m, |
| 5T*300m,8T*300m,10T*300m,20T*300m,25T*300m |
| 5T*400m,8T*400m,10T*400m,20T*400m,30T*400m |
| 5T*500m,8T*500m,10T*500m,20T*500m,30T*500m |
| Rope capacity | 30-100(m) |
| Winch type | single drum electric winch |
| Brand | LBS |
| Rope speed | 8-16(m/min) |
| lifting capacity | 1T-5T(kg) |
| N.W | 260-310(kg) |
| Structural type | in-line winch |
| | |
Structure form
The winch converts the electric energy into mechanical energy through the motor, that is, the rotor of the motor rotates the output, through the triangle belt, shaft, gear, and then drives the drum to rotate after deceleration. The reel winds the wire rope 7 and passes through the pulley block to make the crane hook lift or drop the load Q, change the mechanical energy into mechanical work, and complete the vertical transport loading and unloading work of the load
Installation of electric winch
The most important note here is the state of the rope drum, which must be used to ensure that the lasso is evenly wound before the process begins. The installation process is as follows:
1. Plug in the remote control. Connect the distal end of the first plug-in winch.
2. Do not let the remote connection hang. If you are a driver, operate the remote control from the driver's seat and then make additional connections around the side mirrors of the car to make co-working easier.
3. Open the noose, use the remote control to open the noose a bit, and install it on the side of the electric winch.
Turn on the clutch. Please note that we have to open the hook later to open the clutch.
5. Hold the rope hook hand. Grabbing the hook with one hand pulls the rope out of the roller, so no matter how long the rope has been twisted, it doesn't reach the hook.
6. Pull the rope on the pivot and lock the clutch.
So the electric winch is installed.
Company introduction
Our company mainly serves lifting machinery, Marine machinery, petroleum machinery, water conservancy machinery, construction machinery and other industries. The main products are oil drilling machine, workover machine, well machine, drum of oil truck and winch winch (main barrel adopts libasi double folding line groove) and oil equipment accessories, my factory has more than ten years of production experience, to solve the rope in the process of winding rope, rope biting major problems.
